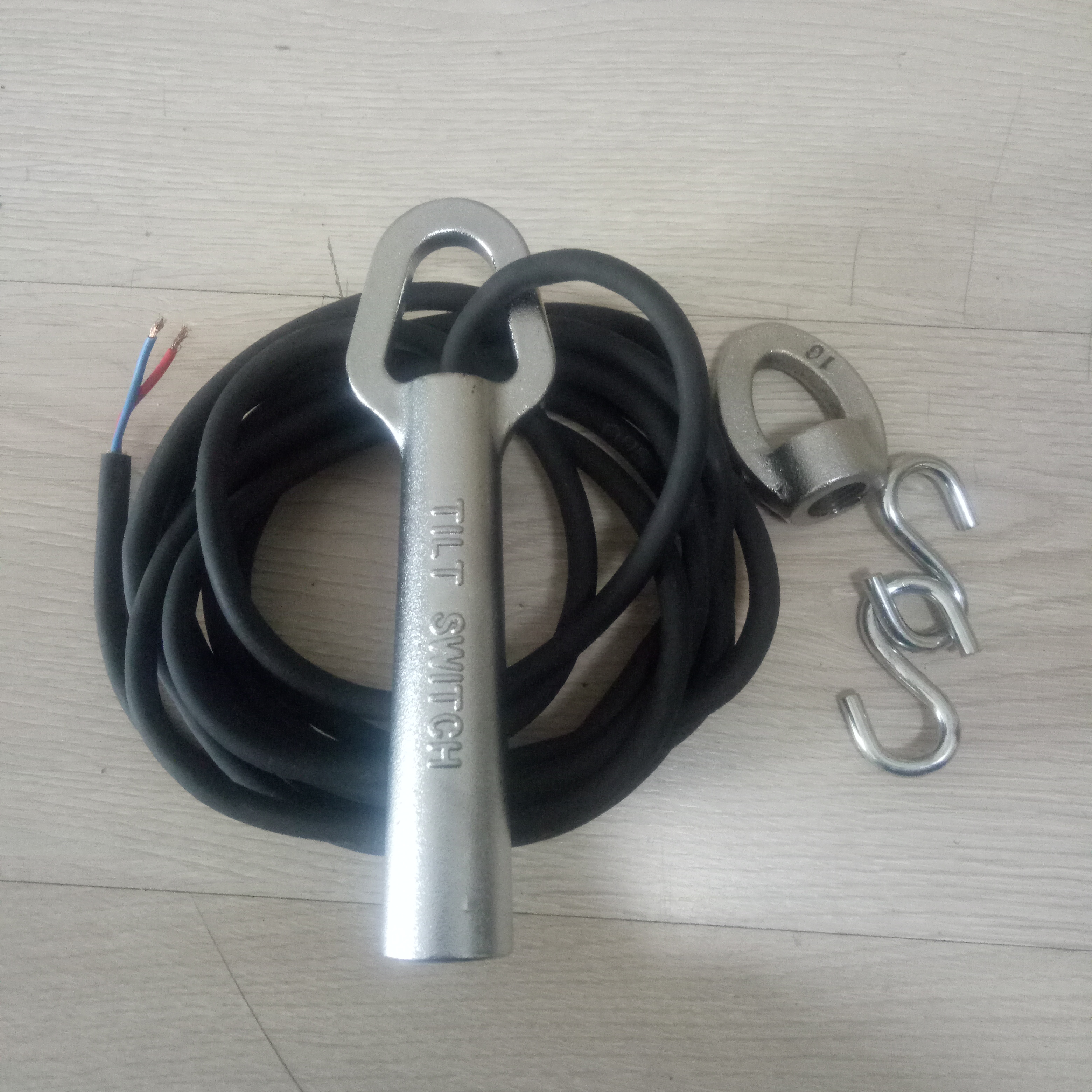

威泰克拉姆齐20-39倾斜开关Tilt Switch
20-39倾斜开关：
20-39型倾斜开关可单独使用，也可配合20-38控制器使用，标准的20-38控制装置，外壳防护等级NEMA4X。前面有指示灯，绿色为正常，红色为报警。0-6秒的可调时间延时线路能避免倾斜开关因瞬间倾斜而引起的误动作。两个常开常闭输出触点用于连接外部报警或控制；线路电源中断会引起继电器动作！
特点：
安装简便，
坚固抗腐蚀；
20-38型控制器为印刷电路板结构；
可调延时防止误动作；
产品性能已被世界上成千上万的应用实列所证实。
技术规格：
技术规格：
额定触点：1A/24v（无感性负载）
额定温度：标准-30℃～+85 ℃；特殊80℃～+200 ℃（20-39C耐高温型）
20-39 tilt switches can be used individually or in conjunction with 20-38 controllers, standard 20-38 controls, NEMA4X. housing protection rating There are indicator lights in front, green is normal, red is alarm. The adjustable time delay line of 0-6 seconds can avoid the misoperation caused by the instant tilt of the tilt switch. Two normally open and close output contacts are used to connect external alarm or control; interruption of line power will cause relay action! Features: Easy to install, Strong corrosion resistance; The 20-38 controller is a printed circuit board structure; Adjustable delay to prevent maloperation; Product performance has been confirmed by thousands of applications in the world. Technical specifications: rated contact :1 A/24v( no inductive load) Rated temperature: Standard -30℃~85℃; Special 80℃~200(20-39 C heat resistant)
